Midland G9 PRO

Midland G9 PRO

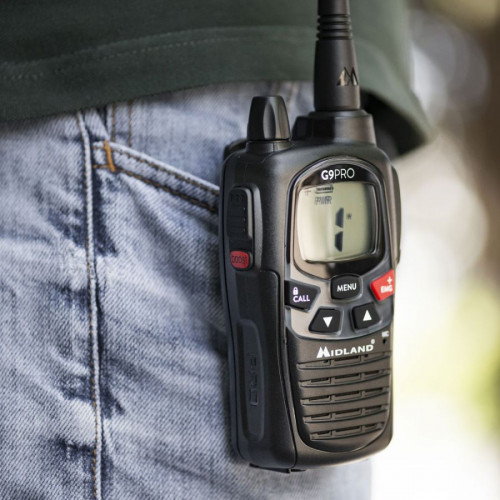

Midland G9 PRO is a feature-rich walkie talkie designed for outdoor users, families, leisure groups and anyone who needs flexible short-range communication. It supports both PMR446 and LPD operation, with an extended PMR446 frequency range and up to 32 PMR446 channels depending on setup.

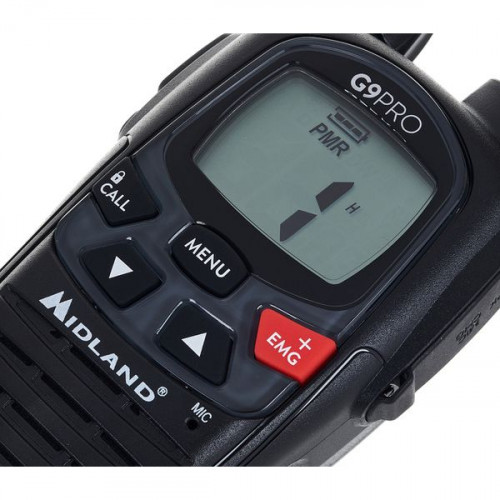

This walkie talkie is built for practical everyday communication. It can be used for talking between users on the same channel, scanning for active channels, monitoring weak signals, using CTCSS or DCS privacy-style tones, and keeping track of activity using its large LCD display. The display shows useful status information including channel, battery level, VOX, keypad lock, Dual Watch, transmit and receive status.

One of the main advantages of the Midland G9 PRO is its Dual PTT system. The larger PTT button can be used with the selected high or low power setting, while the smaller Boost PTT can transmit at high power when required. This allows users to conserve battery during short-range use, while still having extra transmit power available when needed.

The Midland G9 PRO also includes several useful safety and convenience features. The emergency call function can switch compatible G9 PRO units within range to the emergency channel, while Manual Out-of-Range lets users check whether other units are still reachable. It also includes VOX hands-free operation with TalkBack, VibraCALL silent alert, Dual Watch, keypad lock, roger beep, call tones, monitor function and automatic power save.

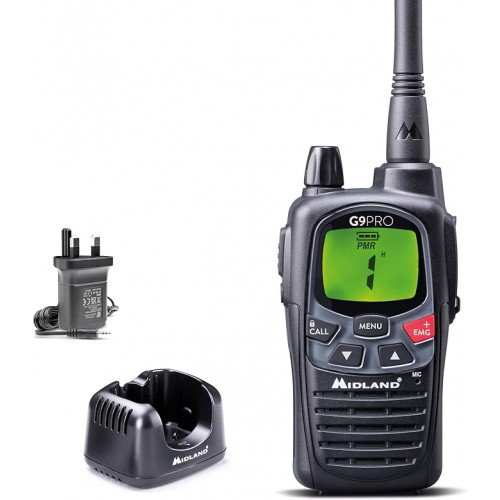

The supplied pack includes 1 x Midland G9 PRO walkie talkie, 1 x single desktop charger, 1 x wall adaptor, 4 x 1800mAh AA NiMH rechargeable batteries and 1 x belt clip.

Technical Specifications

The Midland G9 PRO is a dual-band PMR446/LPD walkie talkie with selectable output power, extended PMR446 channel support, IPX4 weatherproofing, VOX, emergency call, Dual Watch, CTCSS/DCS tone support and rechargeable AA NiMH battery operation. It offers up to 12km coverage in ideal open conditions, with reduced range in built-up or obstructed areas.

• Product Name: Midland G9 PRO
• Product Type: Walkie talkie
• Band: PMR446 / LPD
• PMR446 Traditional Channels: 8 + 16 pre-programmed
• PMR446 New Band Channels: 16 + 16 pre-set
• LPD Channels: 1-69
• PMR446 Traditional Frequency Range: 446.00625-446.09375MHz
• PMR446 New Frequency Range: 446.00625-446.19375MHz
• LPD Frequency Range: 433.075-434.775MHz
• Channel Spacing: 2.5kHz PMR446 / 25kHz LPD
• Output Power: 10mW or 500mW selectable
• PMR446 Power: 500mW
• LPD Power: 10mW
• Modulation: FM
• CTCSS Tones: 38
• DCS Codes: 104
• VOX: Adjustable in 3 levels with TalkBack
• Emergency Call: Yes
• Manual Out-of-Range Function: Yes
• Automatic Out-of-Range Function: Yes
• Dual Watch: Yes
• Scan: Yes
• Monitor Function: Yes
• VibraCALL: Yes
• Call Tones: 5
• Roger Beep: Yes
• Keypad Beep: Yes
• Keypad Lock: Yes
• Display: Wide LCD display
• Display Illumination: Yes
• Speaker: Extra loud speaker
• Weatherproof Rating: IPX4
• Power Save: Automatic current economy circuit
• Low Battery Indicator: Yes
• Battery Type Supplied: 4 x 1800mAh AA NiMH rechargeable batteries
• Optional Battery Support: 4 x AA alkaline batteries, PB-ATL/G7 NiMH battery pack, PB-PRO Li-Ion battery pack
• Power Supply: 6V DC ±10%
• Operating Temperature: -20°C to +55°C
• Dimensions Without Batteries: 64 x 126 x 36mm
• Weight Without Batteries: 150g
• Duty Cycle: TX 5%, RX 5%, standby 90%
• Audio Output Power: 300mW at 10% THD
• Receiver Sensitivity: 0.35μV at 12dB SINAD
• Adjacent Channel Rejection: 70dB

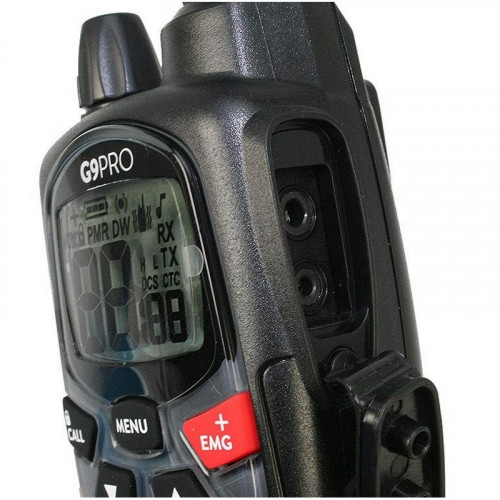

• External Microphone / Recharge Jack: Stereo 2.5mm
• External Speaker Jack: Mono 3.5mm
• Accessory Connector: 2-pin
• Maximum Transmission Time Per Hour: 6 minutes
• Included Charger: Single desktop charger
• Included Power Supply: Wall adaptor
• Included Accessories: Belt clip
• Included Batteries: 4 x 1800mAh AA NiMH rechargeable batteries
